Approx Price:
₹245.00
Tube OD Size: 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 18mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Hydraulic DIN Metric Tube to Socket Weld Connector
Finish: Black Oxide
Standards: DIN 2353/ISO 8434-1
Applications: Hydraulic, Pneumatic, High-pressure Applications

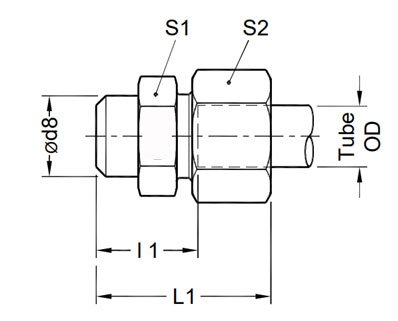

Weld Coupling / Male Pipe Weld Connector | |||||||
 | |||||||
| Part No. | Series | Tube od | Ød8 | l 1 | L1 | S1 | S2 |
| J06PL | Light L 250 bar | 6 | 10 | 14 | 29.5 | 12 | 14 |
| J08PL | 8 | 12 | 16 | 31 | 14 | 17 | |
| J10PL | 10 | 14 | 18 | 33.5 | 17 | 19 | |
| J12PL | 12 | 16 | 18 | 33 | 19 | 22 | |
| J15PL | 15 | 19 | 22 | 38 | 22 | 27 | |
| J18PL | 160 bar | 18 | 22 | 23.5 | 40.5 | 27 | 32 |
| J22PL | 22 | 27 | 28.5 | 45.5 | 32 | 36 | |
| J28PL | 100 bar | 28 | 32 | 30.5 | 48.5 | 41 | 41 |
| J35PL | 35 | 40 | 32.5 | 55.5 | 46 | 50 | |
| J42PL | 42 | 46 | 35 | 58.5 | 55 | 60 | |
| J06PS | Heavy S 630 bar | 6 | 11 | 19 | 34.5 | 14 | 17 |
| J08PS | 8 | 13 | 21 | 36 | 17 | 19 | |
| J10PS | 10 | 15 | 22.5 | 39.5 | 19 | 22 | |
| J12PS | 12 | 17 | 24.5 | 41 | 22 | 24 | |
| J16PS | 400 bar | 16 | 21 | 26.5 | 45.5 | 27 | 30 |
| J20PS | 20 | 26 | 29.5 | 52 | 32 | 36 | |
| J25PS | 25 | 31 | 32 | 57 | 41 | 46 | |
| J30PS | 250 bar | 30 | 36 | 35.5 | 63.5 | 46 | 50 |
| J38PS | 38 | 44 | 38 | 69.5 | 55 | 60 | |
