Size Range: 1/2″ – 24″ / DN15 – DN600
Pressure Rating: Class 150, 300, 600, 900, 1500, 2500lb
Standard: ASME B16.5, EN1092-1
Carbon Steel: ASTM A105 / A105N
Alloy Steel: ASTM A182 F11 / 12 / 5 / 9 / 91 / 92
Stainless Steel: ASTM A182 F304/304L/304H, 316/316L, 310S, 317,347,904L
Duplex Stainless Steel: ASTM A182 F51, F53, F44

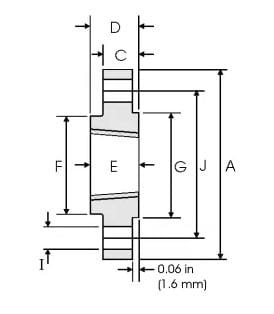

Class 150 lb Threaded Flange Dimensions & Weight |
||||||||||
 |
||||||||||
| NPS | A | C | D | E | F | G | H | I | J | W |
| inch | inch | inch | inch | inch | inch | No. of Holes | inch | inch | kg/pc | |
| mm | mm | mm | mm | mm | mm | mm | mm | |||
| 1/2 | 3.500 | 0.440 | 0.620 | 0.620 | 1.190 | 1.380 | 4 | 0.620 | 2.380 | 0.39 |
| 88.9 | 11.20 | 15.70 | 15.70 | 30.20 | 35.10 | 15.70 | 60.45 | |||
| 3/4 | 3.880 | 0.500 | 0.620 | 0.620 | 1.500 | 1.690 | 4 | 0.620 | 2.750 | 0.56 |
| 98.60 | 12.70 | 15.70 | 15.70 | 38.10 | 42.90 | 15.70 | 69.85 | |||
| 1 | 4.250 | 0.560 | 0.690 | 0.690 | 1.940 | 2.000 | 4 | 0.620 | 3.120 | 0.78 |
| 108.0 | 14.20 | 17.50 | 17.50 | 49.30 | 50.80 | 15.70 | 79.25 | |||
| 1-1/4 | 4.620 | 0.620 | 0.810 | 0.810 | 2.310 | 2.500 | 4 | 0.620 | 3.500 | 1.03 |
| 117.3 | 15.70 | 20.60 | 20.60 | 58.70 | 63.50 | 15.70 | 88.90 | |||
| 1-1/2 | 5.000 | 0.690 | 0.880 | 0.880 | 2.560 | 2.880 | 4 | 0.620 | 3.880 | 1.32 |
| 127.0 | 17.50 | 22.40 | 22.30 | 65.00 | 73.15 | 15.70 | 98.60 | |||
| 2 | 6.000 | 0.750 | 1.000 | 1.000 | 3.060 | 3.620 | 4 | 0.750 | 4.750 | 2.06 |
| 152.4 | 19.10 | 25.40 | 25.40 | 77.70 | 91.90 | 0.750 | 4.750 | |||
| 2-1/2 | 7.000 | 0.880 | 1.120 | 1.120 | 3.560 | 4.120 | 4 | 0.750 | 5.500 | 3.28 |
| 177.8 | 22.40 | 28.40 | 28.40 | 90.40 | 104.6 | 19.10 | 139.7 | |||
| 3 | 7.500 | 0.940 | 1.190 | 1.190 | 4.250 | 5.000 | 4 | 0.750 | 6.000 | 3.85 |
| 190.5 | 23.90 | 30.20 | 30.20 | 108.0 | 127.0 | 19.10 | 152.4 | |||
| 3-1/2 | 8.500 | 0.940 | 1.250 | 1.250 | 4.810 | 5.500 | 8 | 0.750 | 7.000 | 4.81 |
| 215.9 | 23.90 | 31.75 | 31.75 | 122.2 | 139.7 | 19.10 | 177.8 | |||
| 4 | 9.000 | 0.940 | 1.310 | 1.310 | 5.310 | 6.190 | 8 | 0.750 | 7.500 | 5.30 |
| 228.6 | 23.90 | 33.30 | 33.30 | 134.9 | 157.2 | 19.10 | 190.5 | |||
| 5 | 10.00 | 0.940 | 1.440 | 1.440 | 6.440 | 7.310 | 8 | 0.880 | 8.500 | 6.07 |
| 254.0 | 23.90 | 36.60 | 36.60 | 163.6 | 185.7 | 22.4 | 215.9 | |||
| 6 | 11.00 | 1.000 | 1.560 | 1.560 | 7.560 | 8.500 | 8 | 0.880 | 9.5 | 7.45 |
| 279.4 | 25.40 | 39.60 | 39.60 | 192.0 | 215.9 | 22.40 | 241.3 | |||
| 8 | 13.50 | 1.120 | 1.750 | 1.750 | 9.690 | 10.62 | 8 | 0.880 | 11.75 | 12.1 |
| 342.9 | 28.40 | 44.50 | 44.50 | 246.1 | 269.7 | 22.40 | 298.5 | |||
| 10 | 16.00 | 1.190 | 1.940 | 1.940 | 12.00 | 12.75 | 12 | 1.000 | 14.25 | 16.5 |
| 406.4 | 30.20 | 49.30 | 49.30 | 304.8 | 323.9 | 25.40 | 362.0 | |||
| 12 | 19.00 | 1.250 | 2.190 | 2.190 | 14.38 | 15.00 | 12 | 1.000 | 17.00 | 26.2 |
| 482.6 | 31.75 | 55.60 | 55.60 | 365.3 | 381.0 | 25.40 | 431.8 | |||
| 14 | 21.00 | 1.380 | 2.250 | 2.250 | 15.75 | 16.25 | 12 | 1.120 | 18.75 | 34.6 |
| 533.4 | 35.10 | 57.15 | 57.15 | 400.1 | 412.7 | 28.40 | 476.3 | |||
| 16 | 23.50 | 1.440 | 2.500 | 2.500 | 18.00 | 18.50 | 16 | 1.120 | 21.25 | 44.8 |
| 596.9 | 36.60 | 63.50 | 63.50 | 457.2 | 469.9 | 28.40 | 539.8 | |||
| 18 | 25.00 | 1.560 | 2.690 | 2.690 | 19.88 | 21.00 | 16 | 1.250 | 22.75 | 48.9 |
| 635.0 | 39.60 | 68.30 | 68.30 | 505.0 | 533.4 | 31.75 | 577.9 | |||
| 20 | 27.50 | 1.690 | 2.880 | 2.880 | 22.00 | 23.00 | 20 | 1.250 | 25.00 | 61.9 |
| 698.5 | 42.90 | 73.15 | 73.15 | 558.8 | 584.2 | 31.75 | 635.0 | |||
| 24 | 32.00 | 1.880 | 3.250 | 3.250 | 26.12 | 27.25 | 20 | 1.380 | 29.50 | 86.9 |
| 812.8 | 47.80 | 82.60 | 82.60 | 663.4 | 692.2 | 35.10 | 749.3 | |||
