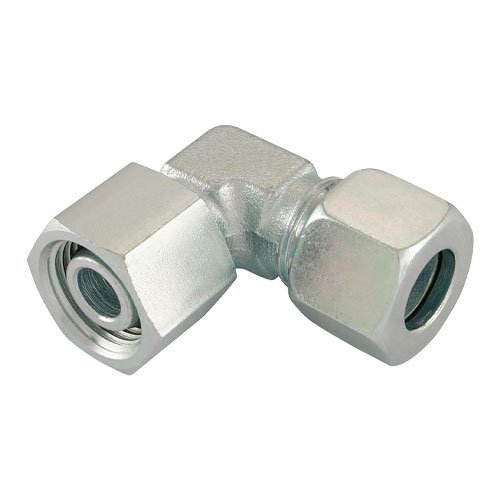

Swivel Elbow Coupling

Approx Price:

₹560.00

Tube OD Size: 6mm, 8mm, 10mm, 12mm, 15mm, 18mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Hydraulic DIN Metric Tube to DIN Swivel Coupling nut Tube Fittings
Seal Type: O-Ring
Standards: DIN 2353/ISO 8434-1
Finish: Zinc Plated with Trivalent Passivation
Applications: Hydraulic, Pneumatic, High-pressure Applications

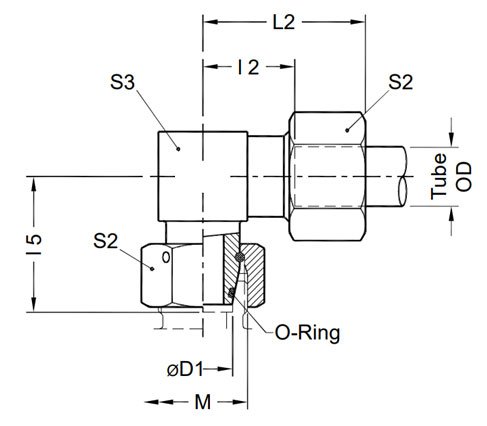

Swivel Elbow Coupling

Part No.	Series	Tube od (ØD1)	M	l 2	l 5	L2	S2	S3	O – Ring ID x CSD
JS06PL	Light L 315 bar	6	M12 x 1.5	12	26	27.5	14	12	4.0 x 1.5
JS08PL		8	M14 x 1.5	14	27.5	29	17	14	6.0 x 1.5
JS10PL		10	M16 x 1.5	15	29	30.5	19	17	7.5 x 1.5
JS12PL		12	M18 x 1.5	17	29.5	32	22	19	9.0 x 1.5
JS15PL		15	M22 x 1.5	21	32.5	37	27	22	12.0 x 2.0
JS18PL		18	M26 x 1.5	23.5	35.5	40.5	32	27	15.0 x 2.0
JS22PL	160 bar	22	M30 x 2.0	27.5	38.5	44.5	36	30	20.0 x 2.0
JS28PL		28	M36 x 2.0	30.5	41.5	48.5	41	36	26.0 x 2.0
JS35PL		35	M45 x 2.0	34.5	51	57.5	50	46	32.0 x 2.5
JS42PL		42	M52 x 2.0	40	56	63.5	60	55	38.0 x 2.5
JS06PS	Heavy S 630 bar	6	M14 x 1.5	16	27	31.5	17	14	4.0 x 1.5
JS08PS		8	M16 x 1.5	17	27.5	32	19	17	6.0 x 1.5
JS10PS		10	M18 x 1.5	17.5	30	34.5	22	19	7.5 x 1.5
JS12PS		12	M20 x 1.5	21.5	31	38	24	22	9.0 x 1.5
JS16PS	400 bar	16	M24 x 1.5	24.5	36.5	43.5	30	24	12.0 x 2.0
JS20PS		20	M30 x 2.0	26.5	44.5	49	36	30	16.3 x 2.4
JS25PS		25	M36 x 2.0	30	50	55	46	36	20.3 x 2.4
JS30PS		30	M42 x 2.0	35.5	55	63.5	50	46	25.3 x 2.4
JS38PS	315 bar	38	M52 x 2.0	41	63	72.5	60	55	33.3 x 2.4
