Approx Price:
₹325.00
Tube OD Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 18mm, 22mm, 25mm, 28mm, 35mm, 38mm
Fitting Type: MS/CS Hydraulic Fittings, SS Hydraulic Fittings, Brass Hydraulic Fittings

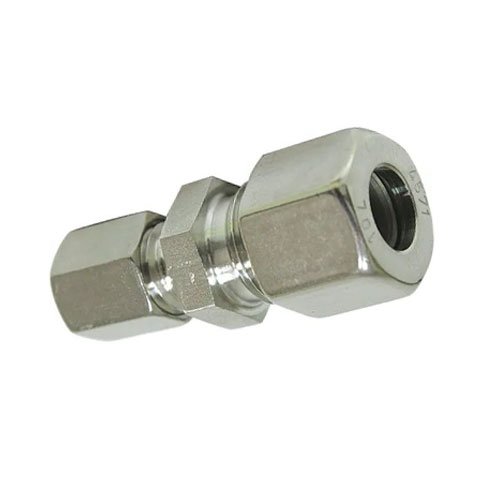

Product Type: Hydraulic DIN Metric Tube to Tube Reducer Coupling Fitting
Ferrule: Single Ferrule
Body Type: Straight, Union
Standards: DIN 2353/ISO 8434-1
Material: Carbon Steel, Stainless Steel (SS304/316), Brass

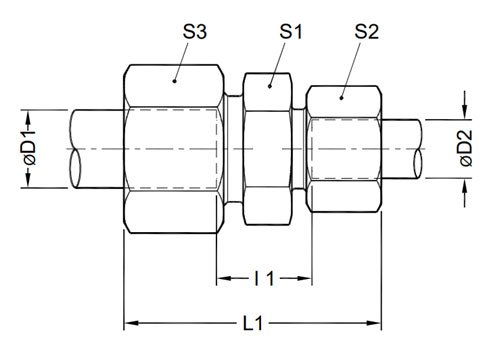

Hydraulic Straight Reducer Coupling | ||||||||
 | ||||||||
| Part No. | Pr (bar) | ØD1 | ØD2 | l 1 | L1 | S1 | S2 | S3 |
| J0604PLL | 100 | 6 | 4 | 10.5 | 32 | 12 | 10 | 12 |
| J0804PLL | 8 | 4 | 12.5 | 34 | 12 | 10 | 14 | |
| J0806PLL | 8 | 6 | 11 | 34 | 12 | 12 | 14 | |
| J0806PL | 315 | 8 | 6 | 11 | 41.5 | 14 | 14 | 17 |
| J1006PL | 315 | 10 | 6 | 12 | 43 | 17 | 14 | 19 |
| J1008PL | 10 | 8 | 12 | 42.5 | 17 | 17 | 19 | |
| J1206PL | 315 | 12 | 6 | 13 | 43.5 | 19 | 14 | 22 |
| J1208PL | 12 | 8 | 13 | 43 | 19 | 17 | 22 | |
| J1210PL | 12 | 10 | 14 | 44.5 | 19 | 19 | 22 | |
| J1510PL | 315 | 15 | 10 | 15 | 46.5 | 24 | 19 | 27 |
| J1512PL | 15 | 12 | 15 | 46 | 24 | 22 | 27 | |
| J1810PL | 315 | 18 | 10 | 15.5 | 48 | 27 | 19 | 32 |
| J1812PL | 18 | 12 | 15.5 | 47.5 | 27 | 22 | 32 | |
| J1815PL | 18 | 15 | 16.5 | 49.5 | 27 | 27 | 32 | |
| J2212PL | 160 | 22 | 12 | 17.5 | 49.5 | 32 | 22 | 36 |
| J2215PL | 22 | 15 | 18.5 | 51.5 | 32 | 27 | 36 | |
| J2218PL | 22 | 18 | 18 | 52 | 32 | 32 | 36 | |
| J2818PL | 160 | 28 | 18 | 19 | 54 | 41 | 32 | 41 |
| J2822PL | 28 | 22 | 21 | 56 | 41 | 36 | 41 | |
| J3522PL | 160 | 35 | 22 | 21 | 61 | 46 | 36 | 50 |
| J3528PL | 35 | 28 | 21 | 62 | 46 | 41 | 50 | |
