Hydraulic Straight Male Stud Standpipe

Approx Price:

₹715.00

Tube OD Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Fitting Type: Hydraulic Fittings, MS Hydraulic Fittings, SS Hydraulic Fittings
Product Type: Male Stud BSP Thread to Metric Standpipe with Swivel Coupling nut Fitting
Standards: DIN 2353/ISO 8434-1
Finish: Zinc Plated with Trivalent Passivation
Material: Carbon Steel, Stainless Steel (SS304/316), Brass

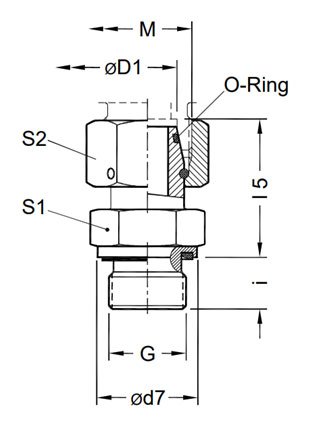

Straight Male Stud Standpipe

Part No.	Series	Tube od ØD1	G Male BSP thread	M	Ød7	i	l 5	S1	S2	O – Ring ID x CSD
JSK06LGE	Light L 315 bar	6	G 1/8 A	M12 x 1.5	14	8	24.5	14	14	4.0 x 1.5
JSK08LGE		8	G 1/4 A	M14 x 1.5	19	12	29.5	19	17	6.0 x 1.5
JSK10LGE		10	G 1/4 A	M16 x 1.5	19	12	27.5	19	19	7.5 x 1.5
JSK12LGE		12	G 3/8 A	M18 x 1.5	22	12	34	22	22	9.0 x 1.5
JSK15LGE		15	G 1/2 A	M22 x 1.5	27	14	32	27	27	12.0 x 2.0
JSK18LGE		18	G 1/2 A	M26 x 1.5	27	14	31.5	27	32	15.0 x 2.0
JSK22LGE	160 bar	22	G 3/4 A	M30 x 2.0	32	16	32.5	32	36	20.0 x 2.0
JSK28LGE		28	G 1 A	M36 x 2.0	40	18	35	41	41	26.0 x 2.0
JSK35LGE		35	G1 1/4 A	M45 x 2.0	50	20	42.5	50	50	32.0 x 2.5
JSK42LGE		42	G1 1/2 A	M52 x 2.0	55	22	46.5	55	60	38.0 x 2.5
JSK06SGE	Heavy S 630 bar	6	G 1/4 A	M14 x 1.5	19	12	27	19	17	4.0 x 1.5
JSK08SGE		8	G 1/4 A	M16 x 1.5	19	12	29.5	19	19	6.0 x 1.5
JSK10SGE		10	G 3/8 A	M18 x 1.5	22	12	32	22	22	7.5 x 1.5
JSK12SGE		12	G 3/8 A	M20 x 1.5	22	12	34	22	24	9.0 x 1.5
JSK16SGE	400 bar	16	G 1/2 A	M24 x 1.5	27	14	37	27	30	12.0 x 2.0
JSK20SGE		20	G 3/4 A	M30 x 2.0	32	16	43	32	36	16.3 x 2.4
JSK25SGE		25	G 1 A	M36 x 2.0	40	18	48	41	46	20.3 x 2.4
JSK30SGE		30	G1 1/4 A	M42 x 2.0	50	20	51	50	50	25.3 x 2.4
JSK38SGE	315 bar	38	G1 1/2 A	M52 x 2.0	55	22	60	55	60	33.3 x 2.4
