Slip-on Flange Class 150 (ASME B16.5)

Approx Price:

₹950.00

Type: ANSI B16.5 Class 150 Slip-on Flange
Size: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 3 1/2″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 22″, 24″
Standards: ANSI B16.5 / ASME B16.5
Class: 150
Material: Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel, Nickel Alloys
Application: Oil Industries, Chemical Industries, Plumbing, Food Processing Industry

ASME / ANSI B16.5 Class 150 Slip-on Flange – Dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Flange Length	RF Dia.	RF Height	PCD	Socket Bore	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg

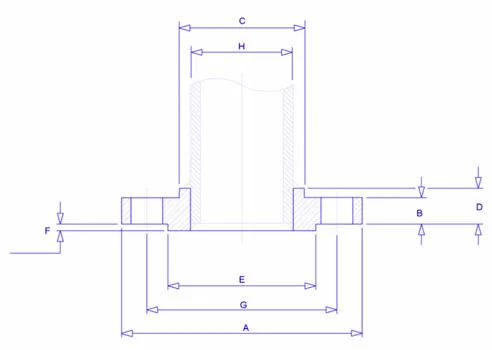

		A	B	C	D	E	F	G	H
1/2	15	90	9.6	30	14	34.9	2	60.3	22.2	4	1/2	50	55	5/8	M14	0.8
3/4	20	100	11.2	38	14	42.9	2	69.9	27.7	4	1/2	50	65	5/8	M14	0.9
1	25	110	12.7	49	16	50.8	2	79.4	34.5	4	1/2	55	65	5/8	M14	0.9
1 1/4	32	115	14.3	59	19	63.5	2	88.9	43.2	4	1/2	55	70	5/8	M14	1.4
1 1/2	40	125	15.9	65	21	73	2	98.4	49.5	4	1/2	65	70	5/8	M14	1.4
2	50	150	17.5	78	24	92.1	2	120.7	61.9	4	5/8	70	85	3/4	M16	2.3
2 1/2	65	180	20.7	90	27	104.8	2	139.7	74.6	4	5/8	75	90	3/4	M16	3.2
3	80	190	22.3	108	29	127	2	152.4	90.7	4	5/8	75	90	3/4	M16	3.7
3 1/2	90	215	22.3	122	30	139.7	2	177.8	103.4	8	5/8	75	90	3/4	M16	5
4	100	230	22.3	135	32	157.2	2	190.5	116.1	8	5/8	75	90	3/4	M16	5.9
5	125	255	22.3	164	35	185.7	2	215.9	143.8	8	3/4	85	95	7/8	M20	6.8
6	150	280	23.9	192	38	215.9	2	241.3	170.7	8	3/4	85	100	7/8	M20	8.6
8	200	345	27	246	43	269.9	2	298.5	221.5	8	3/4	90	110	7/8	M20	13.7
10	250	405	28.6	305	48	323.8	2	362	276.2	12	7/8	100	115	1	M24	19.5
12	300	485	30.2	365	54	381	2	431.8	327	12	7/8	100	120	1	M24	29
14	350	535	33.4	400	56	412.8	2	476.3	359.2	12	1	115	135	1 1/8	M27	41
16	400	595	35	457	62	469.9	2	539.8	410.5	16	1	115	135	1 1/8	M27	54
18	450	635	38.1	505	67	533.4	2	577.9	461.8	16	1 1/8	125	145	1 1/4	M30	59
20	500	700	41.3	559	71	584.2	2	635	513.1	20	1 1/8	140	160	1 1/4	M30	75
24	600	815	46.1	663	81	692.2	2	749.3	616	20	1 1/4	150	170	1 3/8	M33	100
