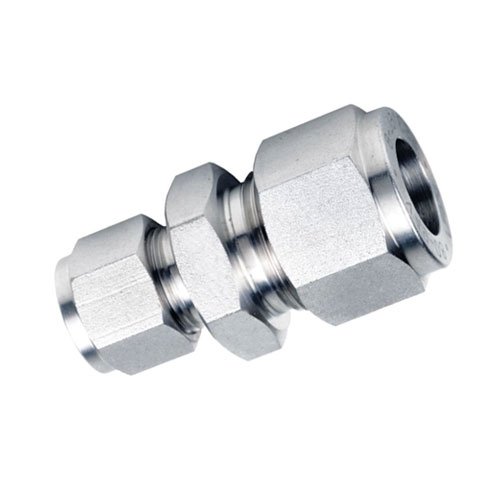

Hydraulic Reducer Union Fitting

Reducer Union Fittings are designed to connect two pipes or tubes of different diameters, ensuring a secure and leak-proof connection in fluid or gas applications. These fittings are commonly used in industries such as pharmaceuticals, chemical processing, oil & gas, food & beverage, and water treatment.

Material Options:

• Stainless Steel (SS 304, SS 316, SS 316L) – Corrosion-resistant, ideal for hygienic applications.
• Brass – Excellent machinability and corrosion resistance for general applications.
• Carbon Steel – High strength for industrial and high-pressure applications.
• Alloy Steel – Suitable for high-temperature and high-pressure environments.

Design Features:

• Precision-machined threads for leak-proof connections.
• Available in compression-type, ferrule-based, and threaded configurations.
• Smooth internal surface for minimal flow resistance.
• Designed to withstand high pressure and temperature variations.
• Available with BSP, NPT, and Metric thread options.

Specifications:

• Sizes: 1/8” to 2” (Inches) | 3mm to 50mm (Metric)
• Pressure Ratings: Up to 6000 psi (based on material and design)
• Temperature Range: -50°C to 400°C (depending on material selection)
• End Connections: Threaded, Socket Weld, Butt Weld, Compression

Applications:

• Pharmaceutical & Food Industry – For hygienic and sterile connections.
• Chemical & Petrochemical Plants – For handling corrosive and hazardous fluids.
• Oil & Gas Industry – Used in fuel lines and high-pressure gas applications.
• Hydraulic & Pneumatic Systems – Provides reliable tube-to-tube connections.
• Water Treatment Plants – For fluid distribution and filtration systems.
