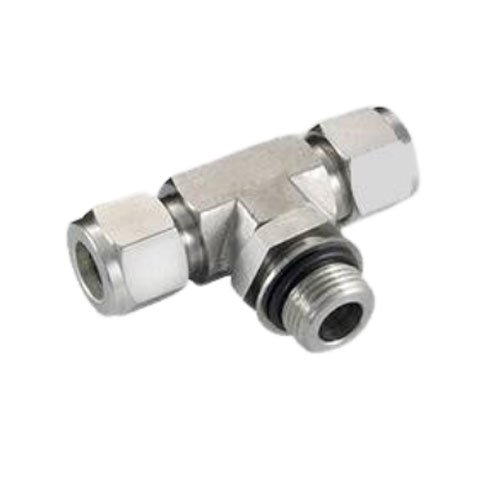

Positionable Male Branch Tee

Approx Price:

₹430.00

Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Material: Stainless Steel, Brass, Alloy 400, Duplex
Fitting Type: Hydraulic Tube to Adjustable Male Branch Thread BSP, NPT
Ferrule: Compression Type Single and double Ferrule Tube Fitting
Shaping: Forged ASTM B164
Bar Stock: ASTM A479, ASTM A276
Applications: Instrumentation, Hydraulic, Pneumatic, High-pressure Applications

The Positionable Male Branch Tee is a high-performance tube fitting designed for secure and leak-free connections between a tube and a female-threaded port. It features a positionable male branch that allows for precise orientation, making it ideal for hydraulic, pneumatic, and fluid handling applications.

Specifications:

Size Range: 1/8″ to 2″
Material Options:
- Stainless Steel (SS 304, SS 316)
- Brass
Fitting Type: Tube to Female Thread (BSP, NPT)
End Connections: Female Threaded Ports
Body Type:
- Barstock
- Forged
- Machined
Seal Type:
- O-Ring
- Nitrile Rubber
- Viton (for high-temperature and chemical resistance)
Surface Finish Options:
- Zinc Plated
- Chrome Plated
- Powder Coated

Key Features:

Positionable Male Branch – Allows for flexible orientation in assembly.
High Pressure & Corrosion Resistance – Available in multiple material options for durability in harsh environments.
Leak-Proof Design – Features high-quality sealing components to ensure zero leakage.
Versatile Applications – Suitable for hydraulic, pneumatic, and fluid transfer systems.
Precision Machined Threads – Ensures compatibility with BSP and NPT female-threaded connections.

Applications:

Hydraulic Systems
Pneumatic Circuits
Chemical & Fluid Processing
Oil & Gas Industry
Industrial Machinery
Automotive & Aerospace

Compliance & Standards:

Meets ISO, DIN, ASTM, and SAE specifications based on material and design requirements.
Threading as per BSP, NPT, or Custom Standards as per customer specifications.
