Approx Price:
₹210.00
Tube OD Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Tube to Male Taper Thread BSPT
Ferrule Type: Single Ferrule
Standards: DIN 2353/ISO 8434-1
Applications: Hydraulic, Pneumatic, High-pressure Applications

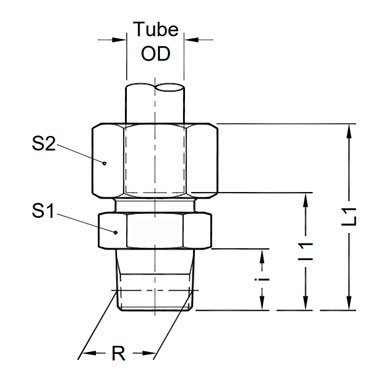

Male Stud Coupling | ||||||||
 | ||||||||
| Part No. | Series | Tube od | R Male BSPT thread | i | l 1 | L1 | S1 | S2 |
| J06PLR | Light L 250 bar | 6 | R 1/8 | 7.5 | 14.5 | 30 | 14 | 14 |
| J06PLR02 | 6 | R 1/4 | 11 | 18 | 33.5 | 14 | 14 | |
| J08PLR | 8 | R 1/4 | 11 | 19 | 34 | 17 | 17 | |
| J10PLR | 10 | R 1/4 | 11 | 20 | 35.5 | 17 | 19 | |
| J12PLR02 | 12 | R 1/4 | 11 | 20 | 35 | 19 | 22 | |
| J12PLR | 12 | R 3/8 | 11.5 | 20.5 | 35.5 | 19 | 22 | |
| J12PLR04 | 12 | R 1/2 | 15 | 25 | 40 | 22 | 22 | |
| J15PLR | 15 | R 1/2 | 15 | 26 | 42 | 24 | 27 | |
| J18PLR | 160bar | 18 | R 1/2 | 15 | 26.5 | 43.5 | 27 | 32 |
| J22PLR | 22 | R 3/4 | 16.5 | 30 | 47 | 32 | 36 | |
| J28PLR | 100 bar | 28 | R 1 | 19 | 33.5 | 51.5 | 41 | 41 |
| J35PLR | 35 | R1.1/4 | 21.5 | 35 | 58 | 46 | 50 | |
| J42PLR | 42 | R1.1/2 | 21.5 | 37.5 | 61 | 55 | 60 | |
| J06PSR | Heavy S 630 bar | 6 | R 1/4 | 11 | 22 | 37.5 | 17 | 17 |
| J08PSR | 8 | R 1/4 | 11 | 22 | 37 | 17 | 19 | |
| J10PSR02 | 10 | R 1/4 | 11 | 23.5 | 40.5 | 19 | 22 | |
| J10PSR | 10 | R 3/8 | 11.5 | 24 | 41 | 19 | 22 | |
| J12PSR02 | 12 | R 1/4 | 11 | 25.5 | 42 | 22 | 24 | |
| J12PSR | 12 | R 3/8 | 11.5 | 26 | 42.5 | 22 | 24 | |
| J12PSR04 | 12 | R 1/2 | 15 | 29.5 | 46 | 22 | 24 | |
| J16PSR | 400 bar | 16 | R 1/2 | 15 | 30.5 | 49.5 | 27 | 30 |
| J20PSR | 20 | R 3/4 | 16.5 | 34 | 56.5 | 32 | 36 | |
| J25PSR | 25 | R 1 | 19 | 39 | 64 | 41 | 46 | |
| J30PSR | 250 bar | 30 | R1.1/4 | 21.5 | 42 | 70 | 46 | 50 |
| J38PSR | 38 | R1.1/2 | 21.5 | 44.5 | 76 | 55 | 60 | |
