Approx Price:
₹310.00
Tube OD Size: 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 18mm
Material: Carbon Steel, Stainless Steel (SS316), Brass
Fitting Type: Tube to Male Thread BSPT, NPT Fitting
Connector Type: Single Ferrule Bite Type Design
Standards: DIN 2353/ISO 8434-1
Finish: Zinc Plated with Trivalent Passivation
Applications: Hydraulic, Pneumatic, High-pressure Applications

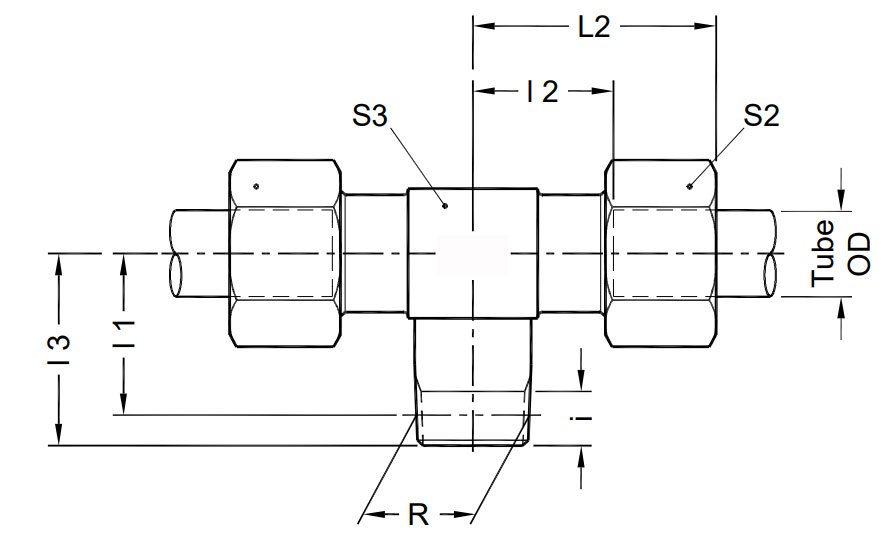

Male Stud Branch Tee | |||||||||||
 | |||||||||||
| Part No. | Series | Tube OD | R Male BSPT thread | i | l 1 min | l1 max | l 2 | l 3 | L2 | S2 | S3 |
| J06PLR | Light L 250 bar | 6 | R 1/8 | 7.5 | 16.1 | 17.9 | 13 | 21 | 28.5 | 14 | 12 |
| J08PLR | 8 | R 1/4 | 11 | 20.2 | 22.8 | 15.5 | 27.5 | 30.5 | 17 | 14 | |
| J10PLR | 10 | R 1/4 | 11 | 19.7 | 22.3 | 15 | 27 | 30.5 | 19 | 17 | |
| J12PLR | 12 | R 3/8 | 11.5 | 20.3 | 22.9 | 17 | 28 | 32 | 22 | 19 | |
| J15PLR | 15 | R 1/2 | 15 | 25 | 28.6 | 22 | 35 | 38 | 27 | 22 | |
| J18PLR | 160 bar | 18 | R 1/2 | 15 | 26 | 29.6 | 23.5 | 36 | 40.5 | 32 | 27 |
| J06PSR | Heavy S 630 bar | 6 | R 1/4 | 11 | 18.7 | 21.3 | 17.5 | 26 | 33 | 17 | 14 |
| J08PSR | 8 | R 1/4 | 11 | 19.7 | 22.3 | 17 | 27 | 32 | 19 | 17 | |
| J10PSR | 10 | R 3/8 | 11.5 | 20.3 | 22.9 | 17.5 | 28 | 34.5 | 22 | 19 | |
| J12PSR | 12 | R 3/8 | 11.5 | 20.3 | 22.9 | 21.5 | 28 | 38 | 24 | 22 | |
| J16PSR | 400 bar | 16 | R 1/2 | 15 | 23.5 | 27.1 | 26 | 33.5 | 45 | 30 | 24 |
