Hydraulic Male Connector

Approx Price:

₹283.00

Tube OD Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Fitting Type: MS/CS Hydraulic Fittings, SS Hydraulic Fittings, Brass Hydraulic Fittings
Product Type: Tube to Male Stud Straight thread and Tube to Male Metric Threads with O-Ring sealing
Thread Type: Male SAE and Metric
Connector Type: Single Ferrule Bite Type Design
Material: Carbon Steel, Stainless Steel (SS304/316), Brass

Hydraulic Straight Male Stud Couplings Male Metric (M) Threads with O-Ring

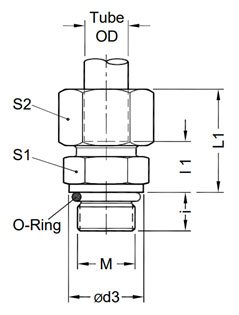

Part No.	Series	Tube od	Male Metric threads	Ø d3	i	l 1	L1	S1	S2	O-Ring ID x CSD ~ 90 Shore
J06PLMO	Light L 315 bar	6	M10 x 1.0	14	9.5	8.5	24	14	14	8.1 x 1.6
J08PLMO		8	M12 x 1.5	17	11	10	25	17	17	9.3 x 2.2
J10PLMO		10	M14 x 1.5	19	11	11	26.5	19	19	11.3 x 2.2
J12PLMO		12	M16 x 1.5	22	12.5	12.5	27.5	22	22	13.3 x 2.2
J15PLMO		15	M18 x 1.5	24	14	13.5	29.5	24	27	15.3 x 2.2
J18PLMO		18	M22 x 1.5	27	15	14.5	31.5	27	32	19.3 x 2.2
J22PLM27O	160 bar	22	M27 x 2.0	32	18.5	16.5	33.5	32	36	23.6 x 2.9
J28PLMO		28	M33 x 2.0	41	18.5	17.5	35.5	41	41	29.6 x 2.9
J35PLMO		35	M42 x 2.0	50	19	17.5	40.5	50	50	38.6 x 2.9
J42PLMO		42	M48 x 2.0	55	21.5	19.5	43	55	60	44.6 x 2.9
J06PSMO	Heavy S 630 bar	6	M12 x 1.5	17	11	13	28.5	17	17	9.3 x 2.2
J08PSMO		8	M14 x 1.5	19	11	15	30	19	19	11.3 x 2.2
J10PSMO		10	M16 x 1.5	22	12.5	15	32	22	22	13.3 x 2.2
J12PSMO		12	M18 x 1.5	24	14	17	33.5	24	24	15.3 x 2.2
J16PSMO	400 bar	16	M22 x 1.5	27	15	18.5	37.5	27	30	19.3 x 2.2
J20PSMO		20	M27 x 2.0	32	18.5	20.5	43	32	36	23.6 x 2.9
J25PSMO		25	M33 x 2.0	41	18.5	23	48	41	46	29.6 x 2.9
J30PSMO		30	M42 x 2.0	50	19	23.5	51.5	50	50	38.6 x 2.9
J38PSMO		38	M48 x 2.0	55	21.5	26.5	58	55	60	44.6 x 2.9

Hydraulic Straight Male Stud Couplings
Part No.	Series	Tube od	Male UN/UNF Class 2A	Ø d3	i	l 1	L1	S1	S2	O-Ring ID x CSD
J08PLS	Light 250 bar	8	7/16 – 20 UNF	14.1	11	10	25.5	17	17	8.92 x 1.83
J10PLS		10	7/16 – 20 UNF	14.1	11	11	26	17	19	8.92 x 1.83
J12PLS		12	9/16 – 18 UNF	17.3	12	11	26.5	19	22	11.9 x 1.98
J12PLS08		12	3/4 -16 UNF	22	14	13	28	24	22	16.36 x 2.20
J12PLS10		12	7/8 -14 UNF	25.2	16	14	29	27	22	19.18 x 2.46
J15PLS		15	3/4 -16 UNF	22	14	14	29	24	27	16.36 x 2.20
J15PLS10		15	7/8 -14 UNF	25.2	16	15	31	27	27	19.18 x 2.46
J18PLS	160 bar	18	3/4 -16 UNF	22	14	14.5	30.5	27	32	16.36 x 2.20
J18PLS10		18	7/8 -14 UNF	25.2	16	14.5	31.5	27	32	19.18 x 2.46
J22PLS		22	7/8 -14 UNF	25.2	16	16.5	33.5	32	36	19.18 x 2.46
J22PLS12		22	1,1/16 -12 UN	31.5	18.5	16.5	33.5	32	36	23.47 x 2.95
J22PLS16		22	1,5/16 -12 UN	37.9	18.5	17.5	34.5	41	36	29.74 x 2.95
J28PLS		28	1,1/16 -12 UN	31.5	18.5	17.5	34.5	41	41	23.47 x 2.95
J28PLS16	100 ba	28	1,5/16 -12 UN	37.9	18.5	17.5	35.5	41	41	29.74 x 2.95
J35PLS		35	1,5/16 -12 UN	37.9	18.5	17.5	40.5	46	50	29.74 x 2.95
J35PLS20		35	1,5/8 -12 UN	47.4	18.5	17.5	40.5	50	50	37.46 x 3.00
J42PLS		42	1 ,5/8 -12 UN	47.4	18.5	19	42.5	55	60	37.46 x 3.00
J08PSS	Heavy 630 bar	8	7/16-20 UNF	14.1	11	15	30	17	19	8.92 x 1.83
J10PSS		10	9/16-18 UNF	17.3	12	14.5	31.5	19	22	11.9 x 1.98
J12PSS		12	9/16-18 UNF	17.3	12	14.5	31	22	24	11.9 x 1.98
J12PSS08		12	3/4 -16 UNF	22	14	17.5	34	24	24	16.36 x 2.20
J16PSS	400 bar	16	3/4 -16 UNF	22	14	15.5	34.5	24	30	16.36 x 2.20
J16PSS10		16	7/8 -14 UNF	25.2	16	18.5	37.5	27	30	19.18 x 2.46
J20PSS08		20	3/4 -16 UNF	22	14	20.5	43	32	36	16.36 x 2.20
J20PSS		20	7/8 -14 UNF	25.2	16	20.5	43	32	36	19.18 x 2.46
J20PSS12		20	1,1/16-12 UN	31.5	18.5	20.5	43	32	36	23.47 x 2.95
J25PSS		25	1,1/16-12 UN	31.5	18.5	23	48	36	46	23.47 x 2.95
J25PSS16		25	1,5/16-12 UN	37.9	18.5	23	48	41	46	29.74 x 2.95
J30PSS	250 bar	30	1,5/16-12 UN	37.9	18.5	23.5	51.5	46	50	29.74 x 2.95
J30PSS20		30	1,5/8-12 UN	47.4	18.5	23.5	51.5	50	50	37.46 x 3.00
J30PSS24		30	1,7/8-12 UN	53.8	18.5	23.5	51.5	55	50	43.69 x 3.00
J38PSS		38	1,5/8-12 UN	47.4	18.5	26	57.5	55	60	37.46 x 3.00
J38PSS24		38	1,7/8-12 UN	53.8	18.5	26	57.5	55	60	43.69 x 3.00
