Hydraulic Hex Nipple

Approx Price:

₹120.00

Size Range: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Material: Carbon Steel, Stainless Steel, Brass, MS
Fitting Type: Hydraulic Male Hex Nipple to Male Stud Thread with O-ring Tube Fitting
Thread Type: BSP, NPT, JIC, SAE etc.
Pressure Rating: 5000 psi to 20000 psi
Finish: Zinc Plated with Trivalent Passivation
Applications: Hydraulic, Pneumatic, High-pressure Applications

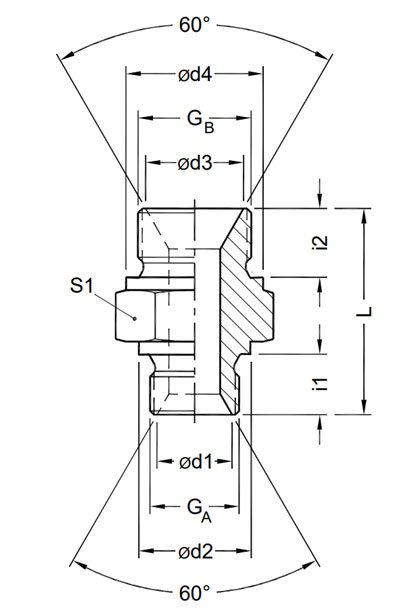

Hydraulic Hex Nipple

Part No.	GA	GB	Ød1	Ød2	Ød3	Ød4	i 1	i 2	L	S1
JSK01G01	G1/8	G1/8	7.5	14	7.5	14	8	8	26	14
JSK01G02	G1/8	G1/4	7.5	14	10.4	18	8	11	29.5	19
JSK02G02	G 1/4	G 1/4	10.4	18	10.4	18	11	11	33	19
JSK02G03	G 1/4	G 3/8	10.4	18	14	22	11	12	36.5	22
JSK02G04	G 1/4	G 1/2	10.4	18	17.5	26	11	14	39	27
JSK03G03	G 3/8	G 3/8	14	22	14	22	12	12	38	22
JSK03G04	G 3/8	G 1/2	14	22	17.5	26	12	14	40.5	27
JSK03G06	G 3/8	G 3/4	14	22	22.9	32	12	16	44.5	32
JSK04G04	G 1/2	G 1/2	17.5	26	17.5	26	14	14	43	27
JSK04G06	G 1/2	G 3/4	17.5	26	22.9	32	14	16	47	32
JSK04G08	G 1/2	G 1	17.5	26	28.7	39	14	19	50	41
JSK06G06	G 3/4	G 3/4	22.9	32	22.9	32	16	16	49	32
JSK06G08	G 3/4	G 1	22.9	32	28.7	39	16	19	52	41
JSK06G10	G 3/4	G 1,1/4	22.9	32	36.8	49	16	20	57	50
JSK08G08	G 1	G 1	28.7	39	28.7	39	19	19	55	41
JSK08G10	G 1	G 1,1/4	28.7	39	36.8	49	19	20	60	50
JSK08G12	G 1	G 1,1/2	28.7	39	42.7	55	19	22	63	55
JSK10G10	G 1,1/4	G 1,1/4	36.8	49	36.8	49	20	20	61	50
JSK10G12	G 1,1/4	G 1,1/2	36.8	49	42.7	55	20	22	64	55
JSK12G12	G 1,1/2	G 1,1/2	42.7	55	42.7	55	22	22	66	55
