Hydraulic Banjo Elbow

Approx Price:

₹1,520.00

Tube OD Size: 6mm to 42mm
Material: Carbon Steel, Stainless Steel, Brass
Fitting Type: Hydraulic Tube to Male Stud Soft Seal Fittings
Thread Type: BSP, NPT, Metric
Pressure: 160 bar, 250 bar, 350 bar
Finish: Zinc Plated with Trivalent Passivation
Applications: Hydraulic, Pneumatic, High-pressure Applications

Hydraulic Banjo Elbow

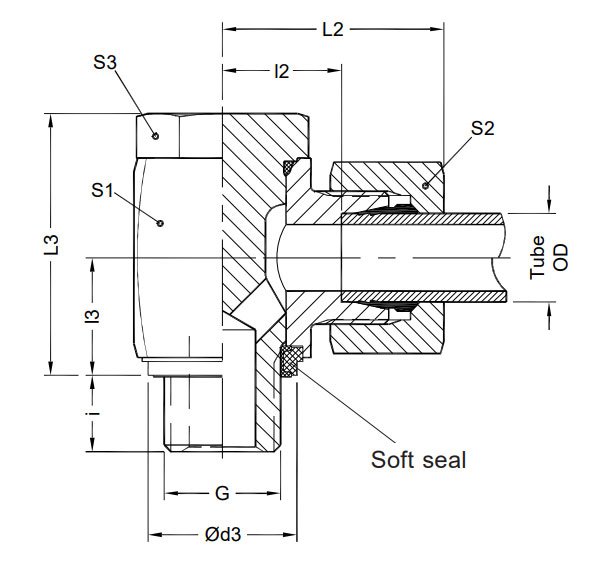

Part No. (With Soft seal)	Part No. (With sealing ring)	Series	Tube OD	BSP thread G	Ød3	i	l 2	l 3	L2	L3	S1	S2	S3
J06PLGE	J06PLG	Light L	6	G 1/8A	14.9	8	13	10	28.5	21	17	14	14
J06PLG02E	J06PLG02	Light L	6	G 1/4A	18.9	12	15	13.5	30.5	27	22	14	19
J08PLGE	J08PLG	350 bar	8	G 1/4A	18.9	12	14	13.5	29	27	22	17	19
J10PLGE	J10PLG		10	G 1/4A	18.9	12	15	13.5	30.5	27	22	19	19
J12PLG02E	J12PLG02		12	G 1/4A	18.9	10	15	15.5	30	30	22	22	19
J12PLGE	J12PLG		12	G 3/8A	21.9	12	17.5	16	32.5	32.5	24	22	22
J15PLGE	J15PLG		15	G 1/2A	26.9	14	21	19.5	37	43	30	27	27
J18PLGE	J18PLG		18	G 1/2A	26.9	14	20.5	21.5	37.5	43	30	32	27
J22PLGE	J22PLG		22	G 3/4A	32.9	16	27	24	44	48	36	36	32
J28PLGE	J28PLG		28	G1A	39.9	18	31.5	30.5	49.5	59	46	41	41
J35PLGE	J35PLG		35	G1.1/4A	49.9	20	35.5	35.5	58.5	70	55	50	50
J42PLGE	J42PLG	160 bar	42	G1.1/2A	55.9	22	40	40.5	63.5	80	65	60	55
J06PSGE	J06PSG	160 bar	6	G 1/4A	18.9	12	16	13.5	31.5	27	22	17	19
J08PSGE	J08PSG	Heavy 350 bar	8	G 1/4A	18.9	12	16	13.5	31	27	22	19	19
J10PSGE	J10PSG		10	G 3/8A	21.9	12	18	16	35	32.5	24	22	22
J12PSGE	J12PSG		12	G 3/8A	21.9	12	18	16	34.5	32.5	24	24	22
J16PSGE	J16PSG		16	G 1/2A	26.9	14	21.5	21.5	40.5	43	30	30	27
J20PSGE	J20PSG		20	G 3/4A	32.9	16	26	24	48.5	48	36	36	32
J25PSGE	J25PSG		25	G1A	39.9	18	31	30.5	56	59	46	46	41
J30PSGE	J30PSG		30	G1.1/4A	49.9	20	36.5	35.5	64.5	70	55	50	50
J38PSGE	J38PSG	250 bar	38	G1.1/2A	55.9	22	41	40.5	72.5	80	65	60	55
