Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Fitting Type: MS/CS Hydraulic Fittings, SS Hydraulic Fittings, Brass Hydraulic Fittings
Product Type: Hydraulic Metric Tube to Female Connector
Thread Type: Female Metric,
Material: Carbon Steel, Stainless Steel (SS304/316), Brass
Connector Type: Single Ferrule Bite Type Design
Hydraulic Straight Female Connector |
|||||||||
 |
|||||||||

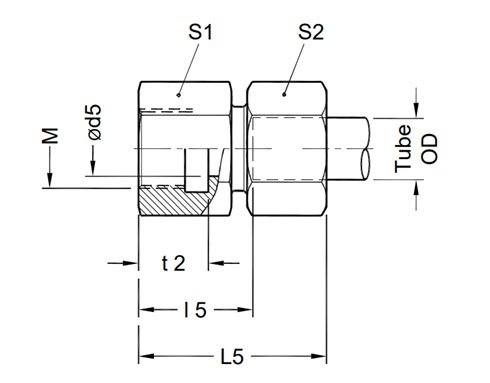

| Part No. | Series | Tube od | M | Ød5 | t 2 | l 5 | L5 | S1 | S2 |
| JI06PLM | Light L 250 bar |
6 | M10 x 1.0 | 4 | 12.5 | 19.5 | 35 | 14 | 14 |
| JI08PLM | 8 | M12 x 1.5 | 6 | 17 | 24 | 39 | 17 | 17 | |
| JI10PLM | 10 | M14 x 1.5 | 8 | 17 | 25 | 40.5 | 19 | 19 | |
| JI12PLM | 12 | M16 x 1.5 | 10 | 17 | 26 | 41 | 22 | 22 | |
| JI15PLM | 15 | M18 x 1.5 | 12 | 17 | 28 | 44 | 24 | 27 | |
| JI18PLM | 160 bar | 18 | M22 x 1.5 | 15 | 19 | 29.5 | 46.5 | 30 | 32 |
| JI22PLM | 22 | M26 x 1.5 | 19 | 21 | 34.5 | 51.5 | 32 | 36 | |
| JI28PLM | 100 bar | 28 | M33 x 2.0 | 24 | 24 | 37.5 | 55.5 | 41 | 41 |
| JI35PLM | 35 | M42 x 2.0 | 30 | 26 | 40.5 | 63.5 | 55 | 50 | |
| JI42PLM | 42 | M48 x 2.0 | 36 | 28 | 42 | 65.5 | 60 | 60 | |
| JI06PSM | Heavy S 630 bar |
6 | M12 x 1.5 | 4 | 17 | 26 | 41.5 | 17 | 17 |
| JI08PSM | 8 | M14 x 1.5 | 5 | 17 | 26 | 41 | 19 | 19 | |
| JI10PSM | 10 | M16 x 1.5 | 7 | 17 | 26.5 | 43.5 | 22 | 22 | |
| JI12PSM | 12 | M18 x 1.5 | 8 | 17 | 27.5 | 44 | 24 | 24 | |
| JI16PSM | 400 bar | 16 | M22 x 1.5 | 12 | 19 | 30.5 | 49.5 | 30 | 30 |
| JI20PSM | 20 | M27 x 2.0 | 16 | 22 | 34.5 | 57 | 36 | 36 | |
| JI25PSM | 25 | M33 x 2.0 | 20 | 24 | 37 | 62 | 41 | 46 | |
| JI30PSM | 250 bar | 30 | M42 x 2.0 | 25 | 26 | 41.5 | 69.5 | 55 | 50 |
| JI38PSM | 38 | M48 x 2.0 | 32 | 28 | 43 | 74.5 | 60 | 60 | |
