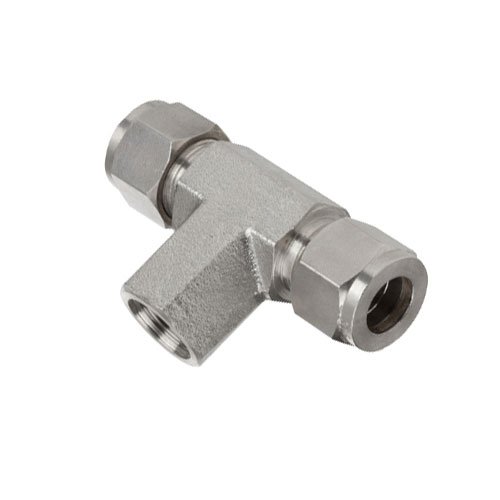

Female Branch Tee

A Female Branch Tee is a type of pipe fitting used to connect three pipes, with a female threaded connection on all three ends or a combination of female and male threads. It is commonly used in plumbing, pneumatic, hydraulic, and industrial applications.

Detailed Specifications of Female Branch Tee:

Material Options:

• Stainless Steel (SS 304, SS 316, SS 316L)
• Carbon Steel
• Brass
• Bronze
• Alloy Steel
• Duplex & Super Duplex Steel
• PVC / UPVC / CPVC
• GI (Galvanized Iron)

Size Range:

• Nominal Bore (NB): 1/8” to 4” (DN 6 to DN 100)
• Metric Sizes: 6mm to 100mm

Thread Standards:

• BSP (British Standard Pipe) – BSPT / BSPP
• NPT (National Pipe Thread)
• ISO Metric Threads
• DIN Threads
• JIS Threads
• SAE Threads

Pressure Rating:

• Low Pressure: 150 PSI to 600 PSI
• Medium Pressure: 1000 PSI to 3000 PSI
• High Pressure: 6000 PSI and above (for hydraulic applications)

Temperature Range:

• Brass & Bronze: -50°C to 200°C
• Stainless Steel & Carbon Steel: -100°C to 600°C
• Plastic (PVC, CPVC, UPVC): -10°C to 80°C

End Connection Types:

• Threaded (Female) on all ends
• Compression fittings
• Socket Weld (SW)
• Butt Weld (BW)
• Push-to-Connect

Application Industries:

• Oil & Gas
• Petrochemical & Chemical
• Pharmaceuticals
• Water Treatment & Plumbing
• Food & Beverage
• HVAC & Fire Protection Systems
• Hydraulic & Pneumatic Systems
• Automobile & Marine Industry
