Approx Price:
₹250.00
Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Fitting Type: MS/CS Hydraulic Fittings, SS Hydraulic Fittings, Brass Hydraulic Fittings

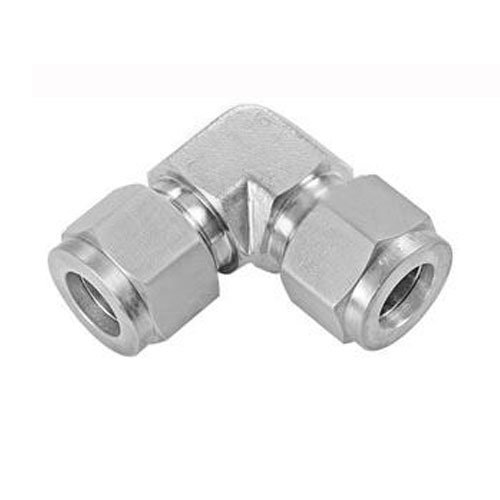

Product Type: Hydraulic Elbow Tube to Tube Coupling 90 Degree
Material: Carbon Steel, Stainless Steel, Brass
Applications: Hydraulic, Pneumatic, High-pressure Applications
Equal Elbow Coupling | ||||||
 | ||||||
| Part No. | Series | Tube od | l 2 | L2 | S2 | S3 |
| JSK06PL | Light L 250 bar | 6 | 12 | 27.5 | 14 | 12 |
| JSK08PL | 8 | 14 | 29 | 17 | 12 | |
| JSK10PL | 10 | 15 | 30.5 | 19 | 14 | |
| JSK12PL | 12 | 17 | 32 | 22 | 17 | |
| JSK15PL | 15 | 21 | 37 | 27 | 22 | |
| JSK18PL | 160 bar | 18 | 23.5 | 40.5 | 32 | 24 |
| JSK22PL | 22 | 27.5 | 44.5 | 36 | 27 | |
| JSK28PL | 100 bar | 28 | 30.5 | 48.5 | 41 | 36 |
| JSK35PL | 35 | 34.5 | 57.5 | 50 | 41 | |
| JSK42PL | 42 | 40 | 63.5 | 60 | 50 | |
| JSK06PS | Heavy S 630 bar | 6 | 16 | 31.5 | 17 | 12 |
| JSK08PS | 8 | 17 | 32 | 19 | 14 | |
| JSK10PS | 10 | 17.5 | 34.5 | 22 | 17 | |
| JSK12PS | 12 | 21.5 | 38 | 24 | 19 | |
| JSK16PS | 400 bar | 16 | 24.5 | 43.5 | 30 | 24 |
| JSK20PS | 20 | 26.5 | 49 | 36 | 27 | |
| JSK25PS | 25 | 30 | 55 | 46 | 36 | |
| JSK30PS | 250 bar | 30 | 35.5 | 63.5 | 50 | 41 |
| JSK38PS | 38 | 41 | 72.5 | 60 | 50 | |
