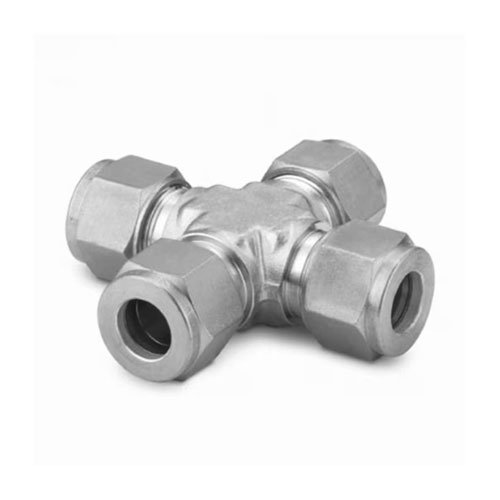

Equal Cross Coupling

Approx Price:

₹380.00

Size: 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″
Material: Stainless Steel (316), Brass, Alloy 400, Duplex
Fitting Type: Hydraulic Cross Tube to Tube Fitting
Ferrule: Single and double Ferrule Fitting
Shaping: Forged ASTM B164
Pressure: 3000 PSI, 6000 PSI, 10000 PSI
Applications: Instrumentation, Hydraulic, Pneumatic, High-pressure Applications

Equal Cross Coupling (Tube to Tube Coupling) – Technical Specifications

Equal Cross Couplings are precision-engineered tube fittings designed to connect four tubes of the same diameter at 90-degree angles. These couplings ensure a secure and leak-proof connection in fluid and gas transfer applications. They are widely used in industries such as pharmaceuticals, chemicals, oil & gas, food processing, and hydraulics.

Material Options:

Stainless Steel (SS 304, SS 316, SS 316L) – Corrosion-resistant, ideal for high-pressure and hygienic applications.
Carbon Steel – High strength and durability for industrial applications.
Brass – Suitable for low-pressure applications with excellent machinability.
Nickel Alloys, Duplex Steel, Hastelloy, Monel, Inconel – For specialized environments requiring superior corrosion resistance.

Technical Specifications:

Design Standard: ASME B16.11 / MSS SP-79 / DIN / ISO
Connection Type: Tube-to-Tube
Size Range: 1/8″ OD to 2″ OD (3mm to 50mm OD)
Pressure Rating: Up to 6000 psi (depending on material and size)
Thread Type (if applicable): NPT, BSPP, BSPT, ISO, or Metric Threads
End Connections:
- Compression Fittings
- Welded Ends
- Push-to-Connect
Surface Finish: Electro-polished, Passivated, or Custom Finish
Temperature Range: -196°C to 600°C (Varies based on material)
Sealing Mechanism: Metal-to-Metal Seal or O-ring Seal (Viton, PTFE, Nitrile)
Leak-proof & Vibration-resistant: Designed for high-performance sealing
