DN80 Butterfly Valve Electrical Actuator

Approx Price:

₹24,475.00

Product: Cast Iron Butterfly Valve Wafer Type EPDM Lining Electrical Actuator
Size: DN80 (3 Inch)
Disc Material: SS304 / 316 (CF-8M)
Class: PN10 / 16 / 25
Body Material: Cast Iron, Ductile Iron
Body Lining: EPDM / Nitrile
End Details: Compatible to sandwich between Flanges as per BS-10 Table D/E/F ASA Class 150

Cast Iron Butterfly Valve SS304 / 316 Wafer Type PN16 with Electrical Actuator

Salient Features

Design Standard IS 13095. Wafer Type.
Electrical Acuator Operated.
Stainless Steel disc which is accurately guided between the two steams.
Integrally moulded rubber lining
Actuator is with position indicator and adjustable center stopper for both open and closed position.
Compliant with B.M.S (Building Management System).
Can be provided with extended wire for ease of installation.
IP 67 protection available for outdoor application.
Inbuilt micro switch position feedback.
Input Voltage – 24/230 V power supply.
Compatible to sandwich between flanges as per BS 10 Table D,E,F ASA Class 150

Test Pressure (Hydrostatic) :

Shell: 2.4 MPa
Seat: 1.76 MPa
Maximum Working Pressure : 1.6 MPa
Maximum Working Temperature : 90°C

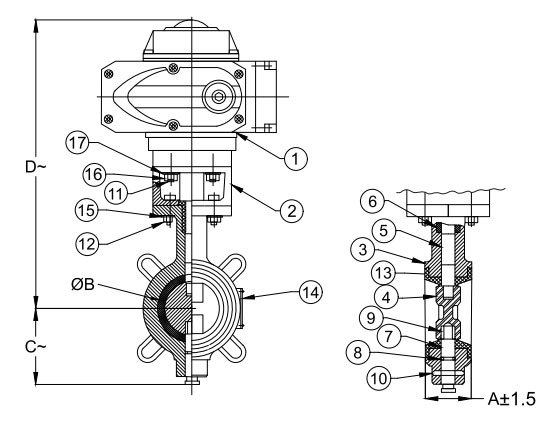

Material List
Part No.	Name of Part	Material of Construction	Specification	Qty
1	Electric Actuator			1
2	Actuator Base	Carbon Steel		1
3	Body	Cast Iron, Ductile Iron	IS 210 FG 200	1
4	Disc	SS304 / 316 (CF-8M)	IS 3444 Gr.1 / ASTM A351 Gr.CF8	1
5	Upper Stem	Stainless Steel	IS 6603 Gr.12 Cr 12	1
6	Packing Bush	Bronze	IS 318 Gr. LTB 2	1
7	Lower Stem	Stainless Steel	IS 6603 Gr.12 Cr 12	1
8	‘O’ Ring	Nitrile Rubber	IS 5192-1	1
9	Bush	PTFE	BS EN 12086-1	1
10	L-Key Screw	Carbon Steel		1
11	Studs for Actuator	Carbon Steel		1
12	Locking Washer	Spring Steel		1
13	Body Lining	EPDM/ Nitrile	IS 5192-1	1
14	Name Plate	Aluminium		1
15	L-Key Bolts & Nuts	Carbon Steel		4 Each
16	Nuts	Carbon Steel		4
17	Spring Washer	Spring Steel		4

Size / Dimensions
Size (mm)	A	ØB	C	D
40	33	40	57	265
50	43	53	73	275
65	46	67	80	290
80	46	81	88	295
100	52	101	110	325
125	56	127	122	372
150	56	151	151	400
200	60	201	180	457
250	68	252	220	516
300	78	301	250	540
