Cast Iron Butterfly Valve Lever Operated

Approx Price:

₹1,475.00

Product: Cast Iron Butterfly Valve Wafer Type EPDM Lining Lever Operated PN16
Size: 40mm to 300mm (1 1/2″ to 12″) (DN 40 to DN 300)
Disc Material: S.G Iron, SS304 / 316 (CF-8M)
Class: PN 10 / 16 / 25
Body Material: Cast Iron
Body Lining: EPDM / Nitrile
End Details: Suitable insertion between Flanges as per BS-10 Table D/E CI-125

Cast Iron Butterfly Valve PN 1.6 with SG Iron Disk – Lever Operated

Salient Features

Body Lining Integrally Moulded and Boded to body
One Piece Body Construction
Working Pressure: 16 Bar
Valve are Bi – Directional
Valve Shal Have moulded Raised Face
Tight Shut Off Valve

Test Pressure (Hydrostatic)

Shell: 2.4 MPa
Seat: 1.76 MPa
Maximum Working Pressure: 1.6 MPa
Maximum Working Temperature: 90 C

Material List
Part No.	Name of Part	Material of Construction	Specification	Qty
1	Flow Control Lever	Castor Steel (Powder Coated)		1
2	Notch Plate	Castor Steel (Powder Coated)		1
3	Body	Cast Iron	IS 210 FG 200	1
4	Disc	S.G Iron, SS304 / 316 (CF-8M)	IS 1865 Gr. 400/15	1
5	Upper Stem	Stainless Steel	IS 6603 Gr.12 Cr 12	1
6	Packing Bush	PTFE		1
7	Lower Stem	Stainless Steel	IS 6603 Gr.12 Cr 12	1
8	‘O’ Ring	Nitrile Rubber	IS 5192-1	1
9	Bush	PTFE	BS EN 12086-1	1
10	L-Key Screw	Carbon Steel		1
11	C – Sunk Screw & Nuts	Carbon Steel		2
12	Locking Washer	Spring Steel		2
13	Body Lining	EPDM/ Nitrile	IS 5192-1	1
14	Name Plate	Aluminium		1

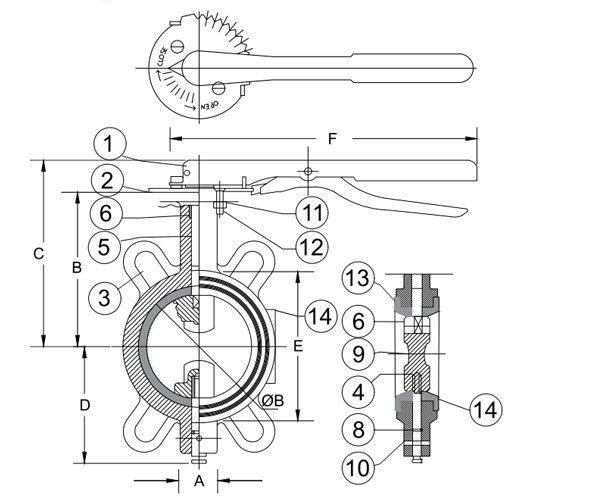

Size / Dimensions
Size (mm)	A	B	C	D	E	F
40	33	108	129	52	40	200
50	43	118	139	64	50	200
65	46	126	147	72	65	200
80	46	132	153	80	80	200
100	52	145	169	96	100	240
125	56	166	190	108	125	240
150	56	176	202	123	150	280
200	60	205	235	151	200	355
