Hydraulic Bulkhead Elbow

Approx Price:

₹430.00

Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Fitting Type: Hydraulic Fittings, MS Hydraulic Fittings, SS Hydraulic Fittings
Product Type: Hydraulic Elbow Bulkhead Tube to Tube Coupling 90 Degree
Material: Carbon Steel, Stainless Steel, Brass
Pressure: 100 bar, 160 bar, 250 bar, 400 bar, 630 bar
Applications: Hydraulic, Pneumatic, high-pressure applications

Elbow Bulkhead Couplings

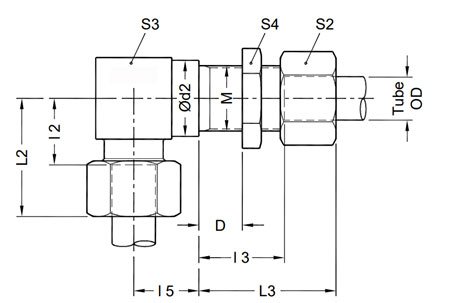

Part No.	Series	Tube od	M	Ød2	l 2	l 3	l 5	L2	L3	S2	S3	S4
JV06PL	Light L 250 bar	6	M12 x 1.5	17	12	27	14	27.5	42.5	14	17	17
JV08PL		8	M14 x 1.5	19	14	27	17	29	42	17	19	19
JV10PL		10	M16 x 1.5	22	15	28	18	30.5	43.5	19	22	22
JV12PL		12	M18 x 1.5	24	17	29	20	32	44	22	24	24
JV15PL		15	M22 x 1.5	27	21	31	23	37	47	27	27	30
JV18PL	160 bar	18	M26 x 1.5	32	23.5	32.5	24	40.5	49.5	32	32	36
JV22PL	160 bar	22	M30 x 2.0	36	27.5	34.5	30	44.5	51.5	36	36	41
JV28PL	100 bar	28	M36 x 2.0	42	30.5	35.5	34	48.5	53.5	41	42	46
JV35PL		35	M45 x 2.0	50	34.5	36.5	39	57.5	59.5	50	50	55
JV42PL		42	M52 x 2.0	60	40	36	43	63.5	59.5	60	60	65
JV06PS	Heavy S 630 bar	6	M14 x 1.5	19	16	29	17	31.5	44.5	17	19	19
JV08PS		8	M16 x 1.5	22	17	29	18	32	44	19	22	22
JV10PS		10	M18 x 1.5	24	17.5	29.5	20	34.5	46.5	22	24	24
JV12PS		12	M20 x 1.5	27	21.5	30.5	21	38	47	24	27	27
JV16PS	400 bar	16	M24 x 1.5	30	24.5	31.5	24	43.5	50.5	30	30	32
JV20PS		20	M30 x 2.0	36	26.5	33.5	30	49	56	36	36	41
JV25PS		25	M36 x 2.0	42	30	35	34	55	60	46	42	46
JV30PS	250 bar	30	M42 x 2.0	50	35.5	37.5	39	63.5	65.5	50	50	50
JV38PS	250 bar	38	M52 x 2.0	60	41	37	43	72.5	68.5	60	60	65
