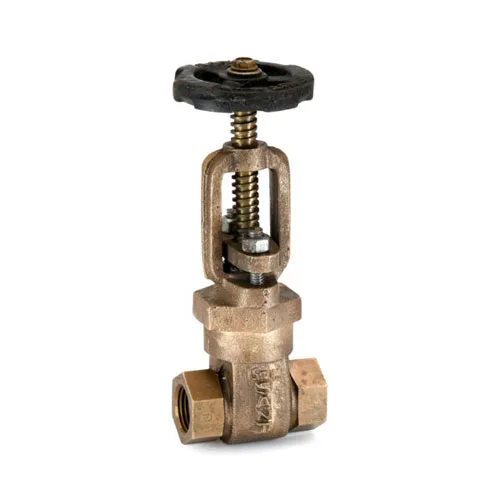

Bronze Gate Valve

Approx Price:

₹1,540.00

Category: Gate Valves / Sluice Valves, Valves

Nominal Size in (mm): 8mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm
Nominal Size (Inches): 1/4Inch, 3/8Inch, 1/2Inch, 3/4Inch, 1Inch, 1.1/4, 1.1/2Inch, 2Inch, 2.1/2Inch, 3Inch, 4Inch
Product Description : Screwed In Bonnet, outside screw & Yoke Type, Rising Stem, Non-Rising Stem
Body Test Pressure : 2.4MPa Hyd.
Seat Test Presuure : 1.6MPa Hyd.
Pressure/Class/Rating : Class-1, Class-2, Class-3

IS-33 Bronze Gate Valve – OS & Yoke Type, Rising Stem, Screwed, IS : 778 Class-2
Components	Materials	Specifications
Body, Bonnet, Wedge, Gland & Gland Nut	Leaded Tin Bronze	IS:318 Gr.LTB2
Stem	Forged Brass	IS:6912 FLB
Handwheel	Cast Iron / Steel	IS:210 Gr.FG200
Gland Packing	PTFE
Screw & Washer for Handwheel	Mild Steel
