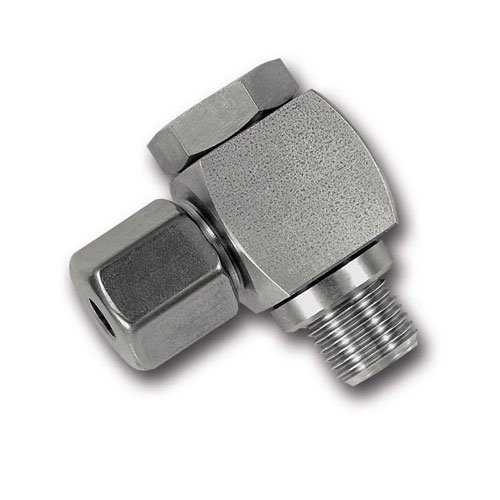

Hydraulic Banjo Coupling

Approx Price:

₹1,450.00

Size: 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 25mm, 28mm, 30mm, 35mm, 38mm, 42mm
Product Type: Hydraulic Fittings, MS Hydraulic Fittings, SS Hydraulic Fittings
Material: Carbon Steel, Stainless Steel, Brass
Fitting Type: Hydraulic Tube to Male Stud O-ring Fittings
Thread Type: BSP, NPT, Metric
Applications: Hydraulic, Pneumatic, High-pressure Applications

Banjo Couplings

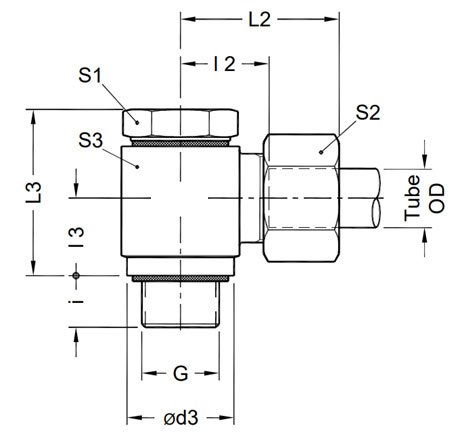

Part No.	Series	Tube od	BSP thread G	Ød3	i	l 2	l 3	L2	L3	S1	S2	S3
JSK06PLG	Light L 250 bar	6	G 1/8 A	15	8	12.5	12	27.5	28	19	14	19
JSK08PLG		8	G 1/4 A	20	12	14	15	29	33	19	17	22
JSK10PLG		10	G 1/4 A	20	12	15	15	31	33	19	19	22
JSK12PLG		12	G 3/8 A	24	12	17.5	18	32.5	40	22	22	27
JSK15PLG		15	G 1/2 A	29	14	20	21	36	45	27	27	30
JSK18PLG	100 bar	18	G 1/2 A	29	14	19.5	21	37	45	27	32	30
JSK22PLG	100 bar	22	G 3/4 A	35	16	27	24	44.5	53	32	36	41
JSK28PLG	100 bar	28	G 1 A	43	18	29.5	29.5	48	63.5	41	41	46
JSK35PLG		35	G1 1/4 A	53	20	35	33	57.5	74	50	50	55
JSK42PLG		42	G1 1/2 A	59	22	40	38.5	63	83	60	60	70
JSK06PSG	Heavy S 400 bar	6	G 1/4 A	20	12	16	15	31	33	19	17	22
JSK08PSG		8	G 1/4 A	20	12	16	15	31	33	19	19	22
JSK10PSG		10	G 3/8 A	24	12	18	18	35.5	40	22	22	27
JSK12PSG		12	G 3/8 A	24	12	18	18	34.5	40	22	24	27
JSK16PSG	400 bar	16	G 1/2 A	29	14	21.5	21	41	45	27	30	32
JSK20PSG		20	G 3/4 A	35	16	28	24	50.5	53	32	36	41
JSK25PSG		25	G 1 A	43	18	31	29.5	56	63.5	41	46	50
JSK30PSG	250 bar	30	G1 1/4 A	53	20	36.5	33	65	74	50	50	60
JSK38PSG	250 bar	38	G1 1/2 A	59	22	41	38.5	73	83	60	60	70
